Thông tin chi tiết sản phẩm:
|
| Tên: | Máy làm dây đai PET | Chiều rộng: | 9-32mm |
|---|---|---|---|
| độ dày: | 0,3-1,2mm | Độ giãn dài: | 10-20% |
| vít: | 38CrMoALA | Nguyên liệu thô: | Mảnh chai PET |
| Năng lực sản xuất: | 100-600 kg/giờ | Toán tử: | 2-3 người |
| máy hút ẩm: | OST-1000 | thủ công/tự động: | thủ công/tự động |
| Làm nổi bật: | PET strap making machine 9-25mm,PET plastic steel belt equipment,high tensile strength PET strap machine |
||

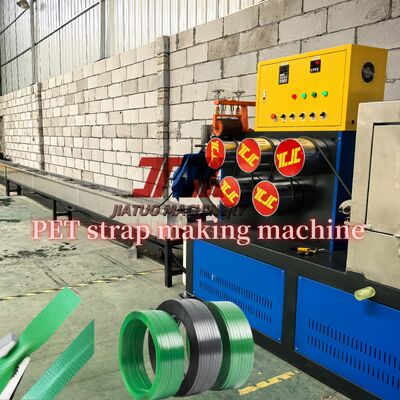

PET strap making machine 9-25mm PET plastic steel belt equipment for high tensile strength
PRODUCT DESCRIPTION OF PET STRAP MAKINGE MACHINE
PET packing belt production line/PET strap making machine
PET plastic-steel strapping equipment is a specialized production line that converts recycled or virgin polyethylene terephthalate (PET) into high-strength plastic strapping through a process including melting, extrusion, stretching, shaping, and winding. PET plastic-steel strapping is widely used for heavy-duty packaging in industries such as steel, aluminum, papermaking, chemical fiber, and building materials due to its high strength, corrosion resistance, aesthetic appeal, and recyclability.
KEY FEATURES:
Dedicated PET Screw------Features powerful plasticization and high extrusion output; compatible with both PET bottle flakes and recycled materials, ensuring a uniform and stable melt.
Intelligent Temperature Control------ Equipped with an intelligent constant-temperature system featuring real-time data display; prevents raw material scorching caused by excessive heat, thereby maintaining premium product quality.
Precise Stretching------ Achieves a stretching ratio of 4.5–6.5 times, resulting in highly oriented molecular chains, superior tensile strength, high fracture resistance, and excellent aging resistance.
Tension Control------- Utilizes high-precision tension sensing throughout the entire process to ensure uniform strap thickness, minimal dimensional tolerance, no lateral deviation, and no slackness, delivering exceptional toughness.
EXTRUSION PARAMETERS TABLE
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | Bottle flakes/crushed materials | ||||
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 | ||||
| Thickness (mm) | 0.4-1.2 | ||||
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | ||||
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
PET strap making machine process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (with raw materials) →⑦ Preheating the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding
PLC control system------PET plastic steel strap production line adopts PLC control system, touch screen operation, easy debugging.
PET plastic steel strap production line adopts PLC microcomputer control system, simple operation, stable operation, can automatically memorize the production parameters of strapping straps of different specifications, and can memorize 99 different specifications at the same time, simple operation, stable operation.
ADVANTAGES OF PET STRAPPING PRODUCTION LINE:
1. It can use 100% PET bottle flakes or crushed materials to produce high-end PET strapping belt;
2. It can produce 1, 2, 4 or 8 strapping belt at the same time according to user requirements;
3. Advanced PLC operation control system, high degree of automation, saving labor costs;
4. Energy-saving and high efficiency, saving production costs; high output and low power consumption.
FAQ:
Q: What is the voltage of the PET strap making machine?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET strap making machine?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET strap making machine?
A: 9-32mm
Q: Can the PET strap making machine be customized?
A: Customization supported
Q: Where does the PET strap making machine come from?
A: China.
Q: What are the certifications for the PET strap making machine?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET strap making machine?
A: 1 set
Q: What is the weight of the PET strap making machine?
20T, 40GP container * 3PCS
