Thông tin chi tiết sản phẩm:
|
| Màu dây đeo: | Đơn/nhiều màu | tên: | Máy làm dây đai PP |
|---|---|---|---|
| Bảo hành: | 1 năm | Độ dày dây đeo: | 0,4-1,2mm |
| Căng thẳng dây đeo: | có thể điều chỉnh | Động cơ: | gugao |
| Tốc độ dây đeo: | > 250m/phút | Loại lõi dây đeo: | Giấy/nhựa |
| biến tần: | INVT | người đốn động: | Máy đùn vít đơn |

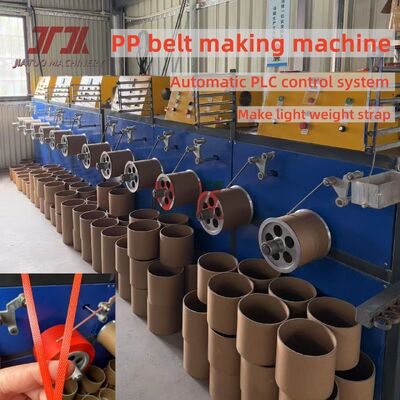

This machine is a professional plastic strapping production line. The PP strapping production line uses virgin PP material and recycled materials as raw materials, which helps customers reduce production costs.
Strap Width: 5-19mm
strap thickness: 0.3-1.2mm
Mould design: PP 1/2/3/4/6/8/10/12/24 straps extrusion machine
| Type | JTPP-90 | JTPP-100 | JTPP-110 | JTPP-125 | JTPP-135 | JTPP-90/65 | JTPP110/75 |
| Strap of number | 2 | 3 | 4 | 6 | 8 | 2 | 4 |
| Sandwich belt | Sandwich belt | ||||||
| width | 5-19mm | 5-19mm | 5-19mm | 9-19mm | 9-19mm | 9-19mm | 9-19mm |
| Thickness | 0.4-1.2mm | ||||||
| Reducer mode | 200 | 200 | 225 | 250 | 280 | 200/173 | 225/173 |
| Screen changer | Automatic/ Manual | ||||||
| Production capacity | 80-120kg/H | 180-200kg/H | 220-250kg/H | 350-370kg/H | 460-500kg/H | 80-120kg/H | 180-200kg/H |
| Screw type | Single screw | Double screw | |||||
Advantage of our PP strap band making machine by single screw extruder
• Comply with strict safety standards, production lines have longer life.
• From raw material processing, extrusion, drawing, embossing, cooling and winding; every step to improve and ensure the quality of packing tape.
• The entire line can be controlled via a touch screen.
• Production speeds can be up to 300m/min, low waste.
• Choice of one ,two,four, six and eight straps production line.
specially designed screw and barrel for pp material
2. Mould
----mould design can be 2/4/6/8/10/12/24straps output
3. Cooling water tank
----Using 304 stainless steel
----the constant temperature water tank provides stable temperature control, significantly improving the quality of the finished strapping.
4. Haul-off machine
---synchronization PLC control system
5. stretch oven and setting oven
The use of a constant-temperature, sealed oven significantly reduces electricity costs.
FAQ
Q1:If you will send engineer coming to our factory to install and test the machines?
A1:Yes. Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q2:If you have CE,SGS,ISO certificate?
A2:Yes, except these, if you also need other certificates,we also can help to apply.
Q3:If we buy your machines, can you offer us wear-out spare pats?
A3:Yes. We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q4:What is the voltage?
A4:380V 50hz 3 phase or any other voltage according to client's requirement.
