Thông tin chi tiết sản phẩm:
|
| Màu dây đeo: | Đơn/nhiều màu | Tên: | Máy làm dây đeo PP |
|---|---|---|---|
| Bảo hành: | 1 năm | Độ dày dây đeo: | 0,4-1,2mm |
| Căng thẳng dây đeo: | có thể điều chỉnh | Động cơ: | Siemens |
| Tốc độ dây đeo: | > 250m/phút | Loại lõi dây đeo: | Giấy/nhựa |
| biến tần: | INVT | người đốn động: | Máy đùn vít đơn |
| Làm nổi bật: | single screw PP strap production line,automatic PP strap winder machine,PP strap making machine with warranty |
||

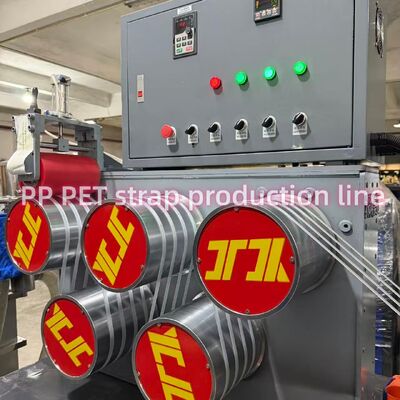

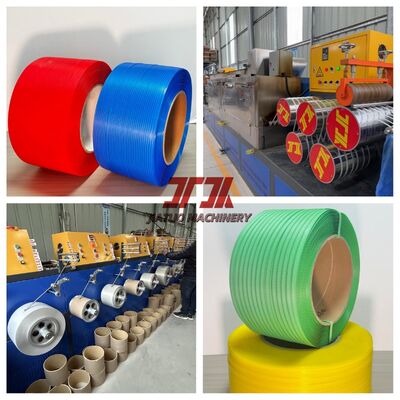

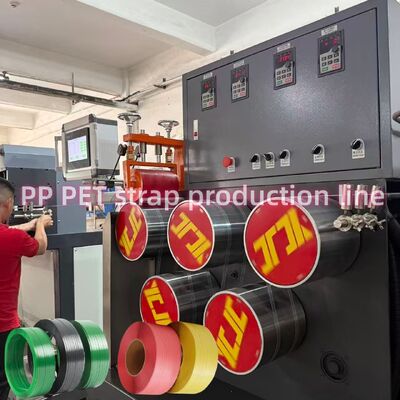

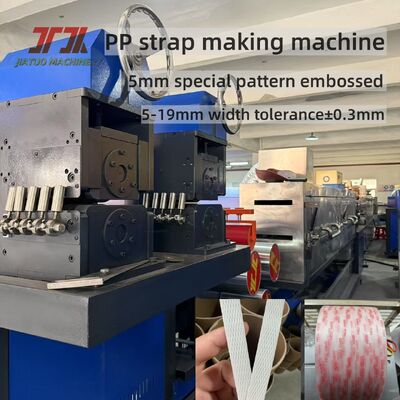

PP strap band extrusion line is mainly for producing PP strap.
The raw material can be 100% recycled material,which can reduce the produce cost and get a good profit. And the Pp bale is the substitution of the steel strap and has a lot of advantages such good extension,high temperature resistant,easy use.
The equipment features an extruder with a 38CrMoALA alloy screw, specially designed for high‑quality strapping band production, and is equipped with an automatic feeding system. The entire line is driven by frequency conversion motors and an intelligent temperature control system, which significantly enhances energy efficiency and ensures stable, reliable extruder performance.
|
Material |
Extruder |
Width |
Strap quantity |
Capacity(kg/h) |
|
PP |
JT-90 |
5-19MM |
2straps |
100-120Kg/h |
|
PP |
JT-110 |
5-19MM |
4straps |
230-260Kg/h |
|
PP |
JT-125 |
5-19MM |
6straps |
350-380Kg/h |
|
Name |
PP strap production line |
|
Place of origin |
SHENZHEN,China |
|
Certification |
ISO9001-2000;CE;SGS |
|
Raw material |
PP new raw material; PP recycled material |
|
Output |
230-260Kg/h |
|
Product width |
5-19mm |
|
Machine size |
L35m*W2M*H4M |
|
Teducer |
GUOMAO |
|
Inverter |
INVT |
|
Temperature controller |
FOTEK |
Automatic screen changer
Extrusion die head
Precision molds manufactured by large CNC centers
Automatic winder
For our winding machine, there have fully-automatic and semi-automatic to choose. you can choose it as you need!
FAQ
Q1:If you will send engineer coming to our factory to install and test the machines?
A1:Yes. Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q2:If you have CE,SGS,ISO certificate?
A2:Yes, except these, if you also need other certificates,we also can help to apply.
Q3:If we buy your machines, can you offer us wear-out spare pats?
A3:Yes. We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q4:What is the voltage?
A4:380V 50hz 3 phase or any other voltage according to client's requirement.
