Thông tin chi tiết sản phẩm:
|
| Hệ thống điều khiển: | PLC | Hệ thống làm mát: | Làm mát không khí |
|---|---|---|---|
| Kích thước: | 4500*1200*1800mm | Hệ thống sưởi ấm: | Sưởi điện |
| Tối đa. Đầu ra: | 100-110kg/giờ | Tối đa. Tốc độ: | 50m/phút |
| Chế độ hoạt động: | Tự động | Quyền lực: | 380V/50Hz |
| Tên sản phẩm: | Máy làm dây đai PET | Vật liệu dây đeo: | Mảnh chai tái chế 100% |
| Độ dày dây đeo: | 0,4-1.2mm | Chiều rộng dây đeo: | 9-32mm |
| Kiểm soát căng thẳng: | Khí nén | Bảo hành: | 1 năm |
| Cân nặng: | 2500kg | Cấu trúc lắp ráp: | Máy đùn loại tích hợp |
| Loại vít: | Vít đơn |

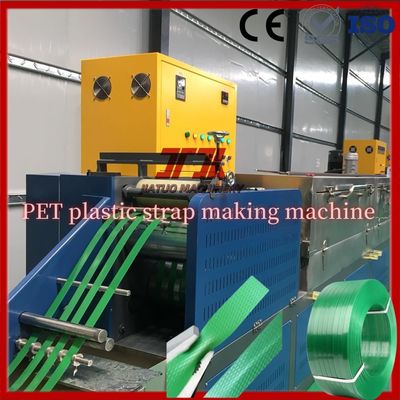

Fully Automatic PET Plastic Packing Strap Making Extruder Machine with automatic filter system

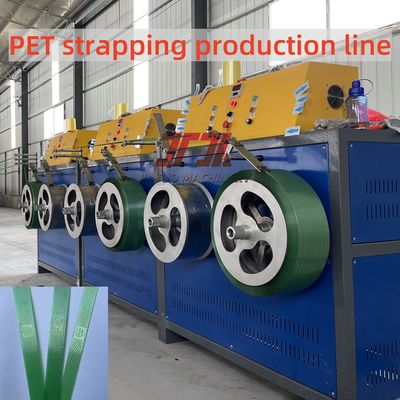

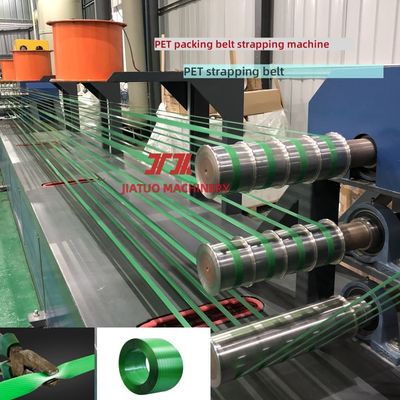

Process Flow of PET Packing Strap Production Line
①Material→②Stirring raw material→③Pre crystallization drying→④vacuum dehumidification→⑤Extruding→⑥cooling and forming →⑦ oven pre-heating →⑧ primary stretching →⑨secondary stretching →⑩ embossing → ⑪oven shaping→⑫ cooling→ ⑬winding (Final product)
Parameters of PET 1 to 2 production machine
| Item | JTPET-90 |
| Screw design | Single screw |
| Straps Qty. | 2 straps |
| Output/Day | 5.5-6T/24 hours |
| Screw Dia. | 90mm |
| Winder Qty. | 2 sets |
| Material used | 100% Recycled Bottle Flakes/Virgin Material/mixed with |
| Running power | 110-120kw |
| Installed power | 200kw |
| Strap specifications | Width 9-32mm thickness 0.6-1.2mm |
| Workshop area | L (55m) ×W (2m) ×H (8m) |
| Electric components | Schneider |
| Materials | PET raw material or 100% PET bottle flakes recycled |
Features of PET Strap Making Machine
1.Screw with compression ratio especially for PP/PET, gradually changing diameter and deeper thread groove at the melting part.
2. Gearbox with hardened gears; Die can be precisely adjusted to ensure stable production and smooth surface of straps.
3.Precise dosing and raw material mixing.
4.Preheat and dry circulating automatically.
5.Even plasticization, stable extrusion and accurate temperature control.
6.Big hauling force stretching device and isolated heating oven.
7.Large capacity stainless steel water tank, automatic liquid level control.

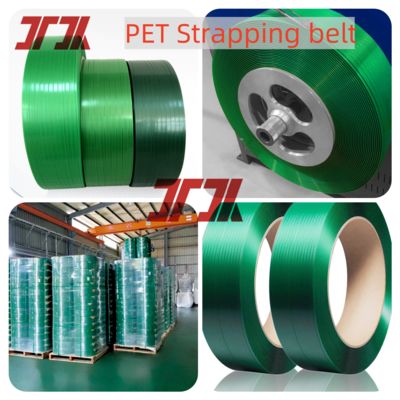

Final Products of PET Strap Band/Belt Extrusion Line/ PET Strap Band/Belt Extrusion Machine
FAQ
Q: Is your company factory or trade company?
A: we are factory, we are engaged in this business for 30 years, we also have our own PET PP straps factory.
Q: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that more convenient (Payment terms: T/T, L/C, Western Union etc.)
