Thông tin chi tiết sản phẩm:
|
| Màu dây đeo: | Đơn/nhiều màu | Tên: | Máy làm dây đeo PP |
|---|---|---|---|
| Bảo hành: | 1 năm | Độ dày dây đeo: | 0,4-1.2mm |
| Căng thẳng dây đeo: | có thể điều chỉnh | Động cơ: | Siemens |
| Tốc độ dây đeo: | > 200-300m/phút | Loại lõi dây đeo: | Giấy/nhựa |
| biến tần: | INVT | người đốn động: | Máy đùn vít đơn |
| Hệ thống điều khiển: | PLC | Chiều rộng dây đeo: | 5-19 mm |
| Làm nổi bật: | 5-19mm PP strapping production line,single-screw PP strap making machine,automatic PET plastic winding machine |
||

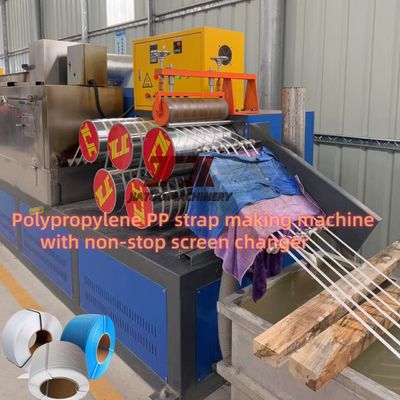

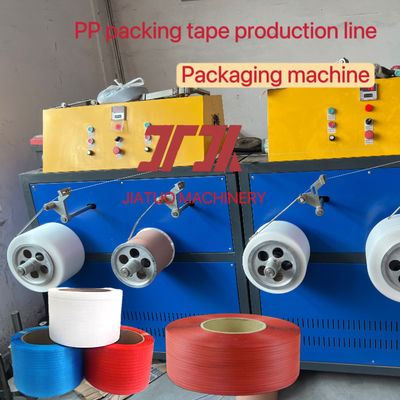

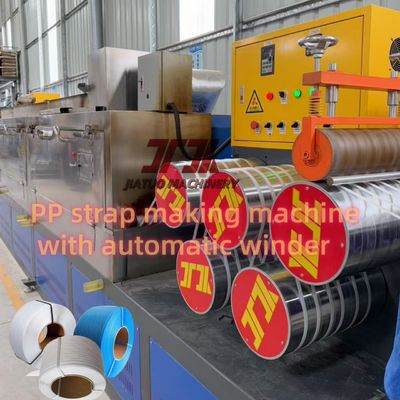

5-19mm single-screw PP strapping production line PP/PET plastic machinery automatic winding machine
DESCRIPTION OF PP STRAPPING EQUIPMENT
PP strapping belt production line is a high-end intelligent extrusion equipment that can produce PP belt: width: 5-19mm, thickness: 0.3-1.2mm
Raw materials-----PP strapping equipment can produce plastic raw materials:
100%recycled materials or PP polypropylene new materials to produce strapping tape;
Screw-----The equipment adopts high-precision high-quality screws, adopts well-known brands, and has unique parameter design. It has the advantages of large extrusion volume, good plasticization, high hardness and wear resistance; equipped with a quantitative extrusion system, the width and thickness of the produced belts are the same, the error range is small, and it meets the national strapping tape acceptance standards;
Automatic screen changer------Equipped with a non-stop automatic screen changer, the screen does not need to be stopped, and the efficiency is maximized. 4-net circulation large-area filtration does not require frequent
screen changes.
4. PLC system----The equipment adopts an intelligent PLC Chinese/English version control system, which is simple and easy to understand, beautiful and generous, sturdy and durable, long life, and low failure rate. The equipment has an exclusive parameter memory system, which can store data after each specification is produced, and the parameters can be directly adjusted during the next production.
5.Oven----Constant temperature intelligent oven, with multiple heating tubes inside, uses electricity to generate heat energy, reaches the set temperature, and automatically stops heating, with low power consumption and less loss.
| Technical Parameters | Details |
|---|---|
| Name | PP Strap Making Machine |
| Video outgoing-inspection | Provided |
| Strap Speed | >250m/min |
| Screw diameter (mm) | 110mm |
| Strap Tension | Adjustable |
| Motor | GUGAO |
| Key Selling Points | Lead To Germany Japan Technology |
| Power Supply | 380V/220V |
| Strap Material | PP Recycle Material/New Raw Material |
| Applicable raw materials | Recycled Material And Polypropylene |

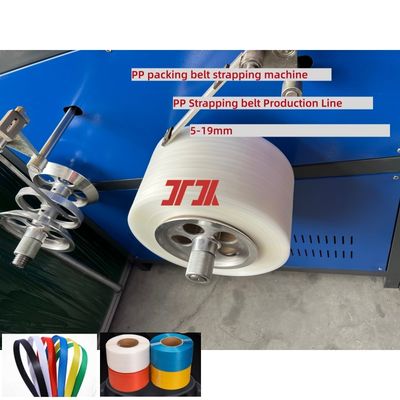

FINISHED PP STRAPPING BELT:
Features:
Good plasticity
Strong breaking force
Bending resistance
Low density
Widely used in many fields, including but not limited to logistics, packaging, transportation, electronic products, hardware, home appliances, clothing, etc.
FAQ
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:TT,L/C at sight or MIC trade assurance.
Q3:If you will send engineer coming to our factory to install and test the machines?
A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q4:If you have CE,SGS,ISO certificate?
A4:Yes,except these,if you also need other certificates,we also can help to apply.
