Thông tin chi tiết sản phẩm:
|
| tên: | Dòng sản xuất dây đeo PP | Vật liệu thô: | Viên nguyên liệu Polypropylene PP, viên tái chế |
|---|---|---|---|
| Thiết kế trục vít: | Tùy chọn | Loại vít đôi: | Trục vít đôi song song đồng quay |
| Loại điều khiển: | Điện | Loại xử lý: | máy đùn |
| Tự động hóa: | Tự động | Ứng dụng: | dây đeo bao bì |
| Chiều rộng: | 5-19mm | Độ dày: | 0,3-1,2 mm |
| Làm nổi bật: | PP Strapping Equipment,PP Strapping Production Line,19 mm PP Strapping Production Line |
||

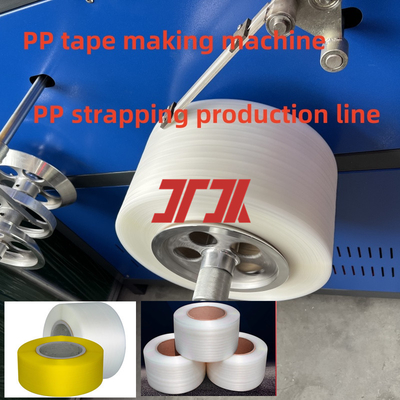

100-300m/min line speed 5-19 mm PP strapping production line PP strapping equipment
DESCRIPTION OF PP STRAPPING PRODUCTION LINE
Production speed:
usually 200-300 m/min (high-speed equipment can reach more than 300 meters).
Band width/thickness range: width 5-19mm, thickness 0.3-1.2mm (customizable).
Raw material requirements: PP new material or recycled material.
Power consumption: The whole machine power is about 100kW (depending on the production capacity).
FEATURES
Extrusion----Extrusion capacity can be customized according to customer requirements, and can produce 2-12 strips.
Oven-----Energy-saving and environmentally friendly, constant temperature oven, high output, low power consumption.
Winding machine-----Can be equipped with semi-automatic winding machine & fully automatic winding machine according to customer requirements
EXTRUSION PARAMETERS TABLE
| Model | PP-2 | PP-4 | PP-6 | PP-8 | PP-10 | PP-12 |
| Raw material | PP polypropylene new material/recycled material | |||||
| Number of tapes | 2 | 4 | 6 | 8 | 10 | 12 |
| Width(mm) | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 |
| Thickness(mm) | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 |
| Line speed(m/min) | ≧260-300 | |||||
| PLC control system | PLC | PLC | PLC | PLC | PLC | PLC |
| Screw Model | 90 | 110 | 125 | 135 | 135 | 135 |
| Reducer model | 200 | 220 | 250 | 280 | 280 | 280 |
| Winding machine | Automatic winding machine /Semi-automatic winding machine | |||||
| Screen Changer | Automatic/Manua | |||||
| Production capacity 24H | 2.5-3T | 6-7T | 8-9T | 10-11T | 12-13T | 13--14T |
Auxiliary Feeding Section:
The PP strapping equipment is equipped with ---- 3 sets of auxiliary feeders,
Can add dyeing masterbatch------- change the color of PP strap
Can add filling masterbatch----- reduce the cost of PP strap by more than 30%
Can add defoaming agent-------- eliminate the moisture of PP raw materials
Applicable to balers:
1. Fully automatic baler
2. High-speed baler
3. Semi-automatic baler
4. Handheld electric baler
5. Manual clamp baler
FQA:
Q:What is the voltage of PP Strapping Production Line?
A:380V/50HZ, we support customization
Q:Can the PP Strapping Production Line be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PP Strapping Production Line?
A:We are from China.
Q:Can PP Strapping Production Line provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP Strapping Production Line stable?
A:We have 30 years of manufacturing experience, and have their own PP strapping equipment plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
